Part II · Protocol & Services · Chapter 4

Onion Services v3

Commands only. What each step does, why it is built this way, and the judgment behind it are in the book.

Workstation tier 7 labs ≈ 6.5–8 h 4 GB RAM Windows · macOS · Linux

Labs in this chapter

What you'll be able to do

Decode a v3 address to its key, checksum, and version, and explain why services can't be enumerated (Lab 4.1 - Anatomy of a v3 address)
Publish an onion directly over the control port and see the address derived from a key (Lab 4.2 - Publish a service the real way)
Fetch a descriptor and explain per-day blinding and the HSDir ring (Lab 4.3 - The descriptor and the hash ring)
Build a client-authorised service and prove an un-keyed client fails at the descriptor, not the connection (Lab 4.4 - Client authorization, properly)
Grind a vanity prefix and reason about the cost curve and the OPSEC of a recognisable address (Lab 4.5 - Vanity addresses and what they cost)
Recover a service's real address from its own leaks (Lab 4.6 - How onion services get found)
Harden a service so its host has nothing to leak (Lab 4.7 - Hardening a service you run)

LAB 4.1

Anatomy of a v3 address

0.5–1 h 4 GB Key concept

Step 1, Decode an address by hand

workstation terminal

$ python3 - <<'PY'
import base64, hashlib
addr = "duckduckgogg42xjoc72x3sjasowoarfbgcmvfimaftt6twagswzczad"
raw = base64.b32decode(addr.upper())
pubkey, checksum, version = raw[:32], raw[32:34], raw[34]
want = hashlib.sha3_256(b".onion checksum" + pubkey + bytes([version])).digest()[:2]
print("length      :", len(addr), "chars ->", len(raw), "bytes")
print("version     :", version)
print("pubkey (hex):", pubkey.hex())
print("checksum ok :", checksum == want)
PY

Expected

length      : 56 chars -> 35 bytes
version     : 3
pubkey (hex): 1a0e...  (32 bytes)
checksum ok : True

Step 2, Why you can't enumerate services

Verify in the Docker host

Ubuntu

$ ./lab check 4.1

A v3 address decodes to 35 bytes: 32-byte key, 2-byte checksum, version 3
The recomputed checksum matches
You can state why v3 services can't be enumerated and v2 could

What this lab looks like

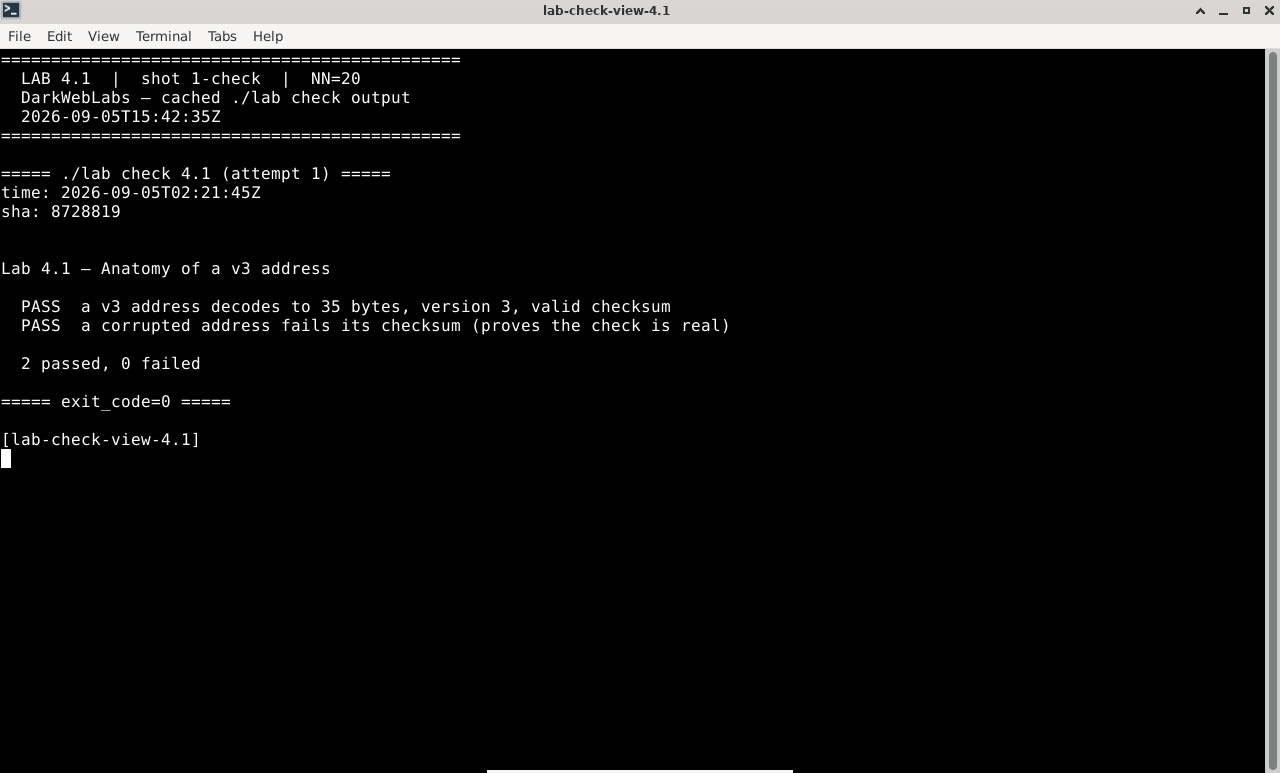

Terminal showing ./lab check 4.1 and its output

Terminal: ./lab check 4.1

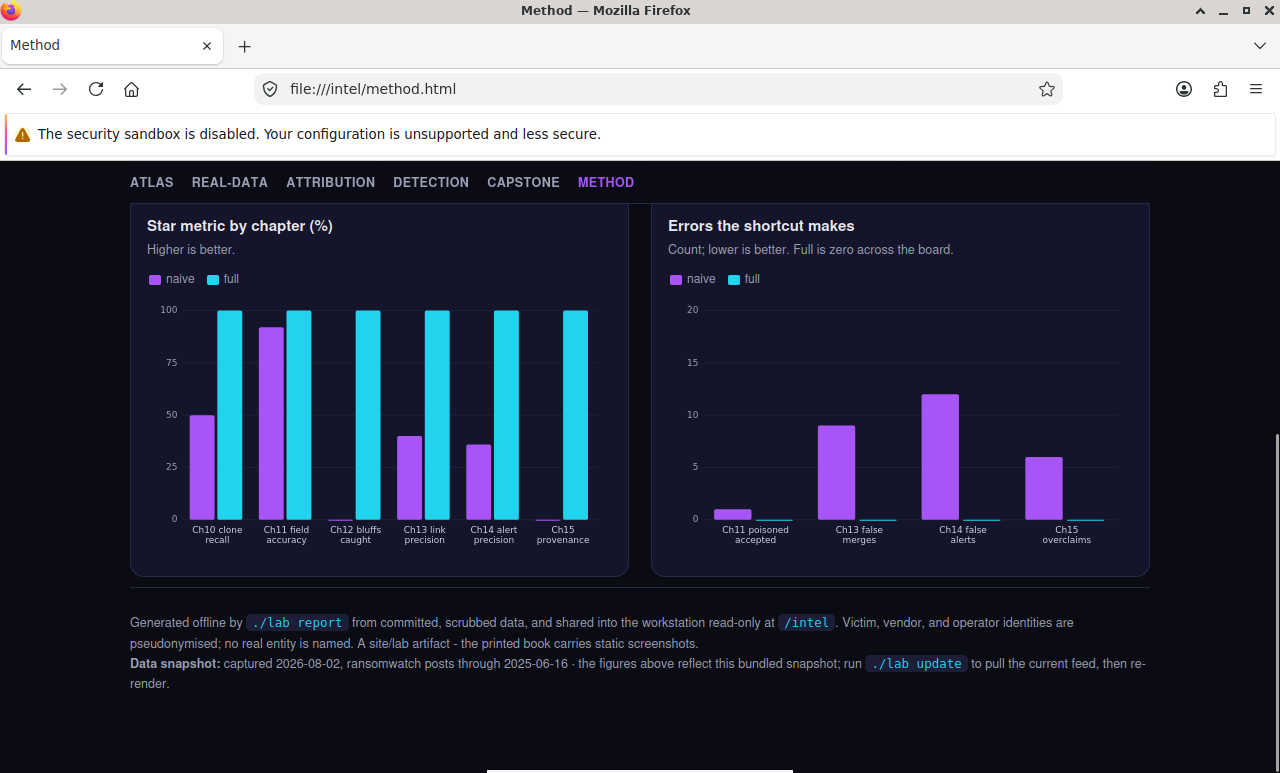

Intel report: method.html

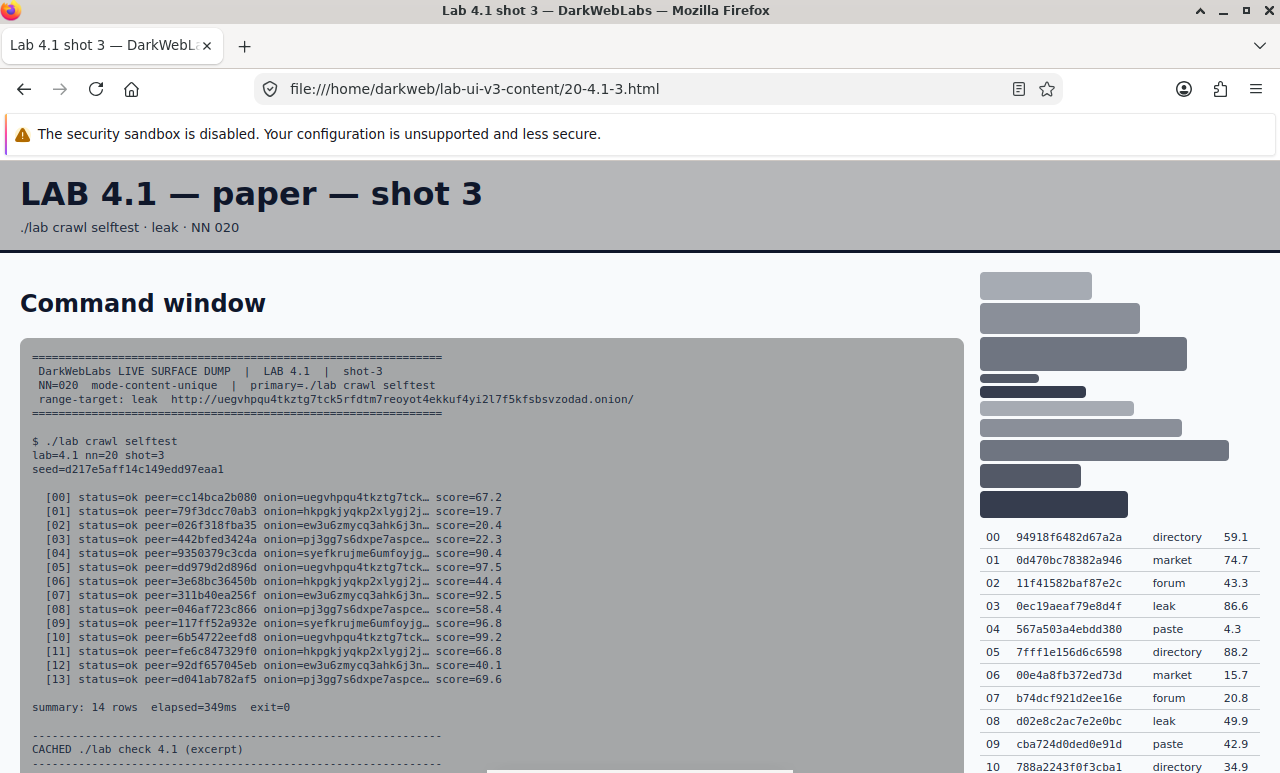

Firefox rendering an HTML view for lab 4.1

Firefox on this lab's HTML view

LAB 4.2

Publish a service the real way

1 h 4 GB All platforms

Step 1, Serve something, then publish it

workstation terminal

# a throwaway web server on a local port
$ echo 'hello from an onion' > /tmp/site/index.html 2>/dev/null || \
    (mkdir -p /tmp/site && echo 'hello from an onion' > /tmp/site/index.html)
$ (cd /tmp/site && python3 -m http.server 8080 &)

# ask the gateway's Tor to create an onion pointing at it
$ printf 'AUTHENTICATE "%s"\r\nADD_ONION NEW:ED25519-V3 Port=80,10.152.152.11:8080\r\nQUIT\r\n' \
    "$LAB_CONTROL_PW" | nc 10.152.152.10 9051

Expected

250-ServiceID=2gzyxa5ihm7nsggfxnu52rck2vv4rvmdlkiu3zzui5du4xyclen53wid
250-PrivateKey=ED25519-V3:0H8...base64...==
250 OK
250 closing connection

Verify in the Docker host

Ubuntu

$ ./lab check 4.2

ADD_ONION NEW:ED25519-V3 succeeds over the control port
It returns a 56-character ServiceID and a matching private key
The address decodes to the public half of the returned key

What this lab looks like

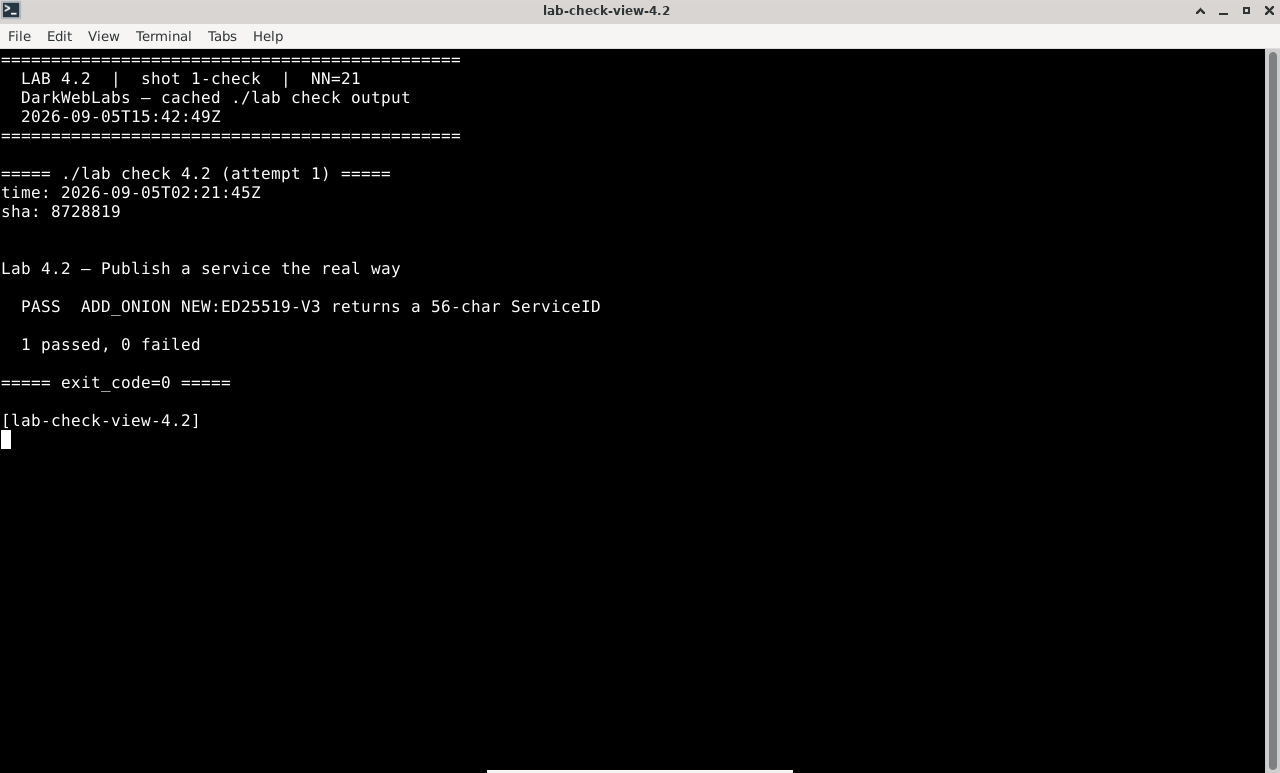

Terminal showing ./lab check 4.2 and its output

Terminal: ./lab check 4.2

I2P router console: graphs

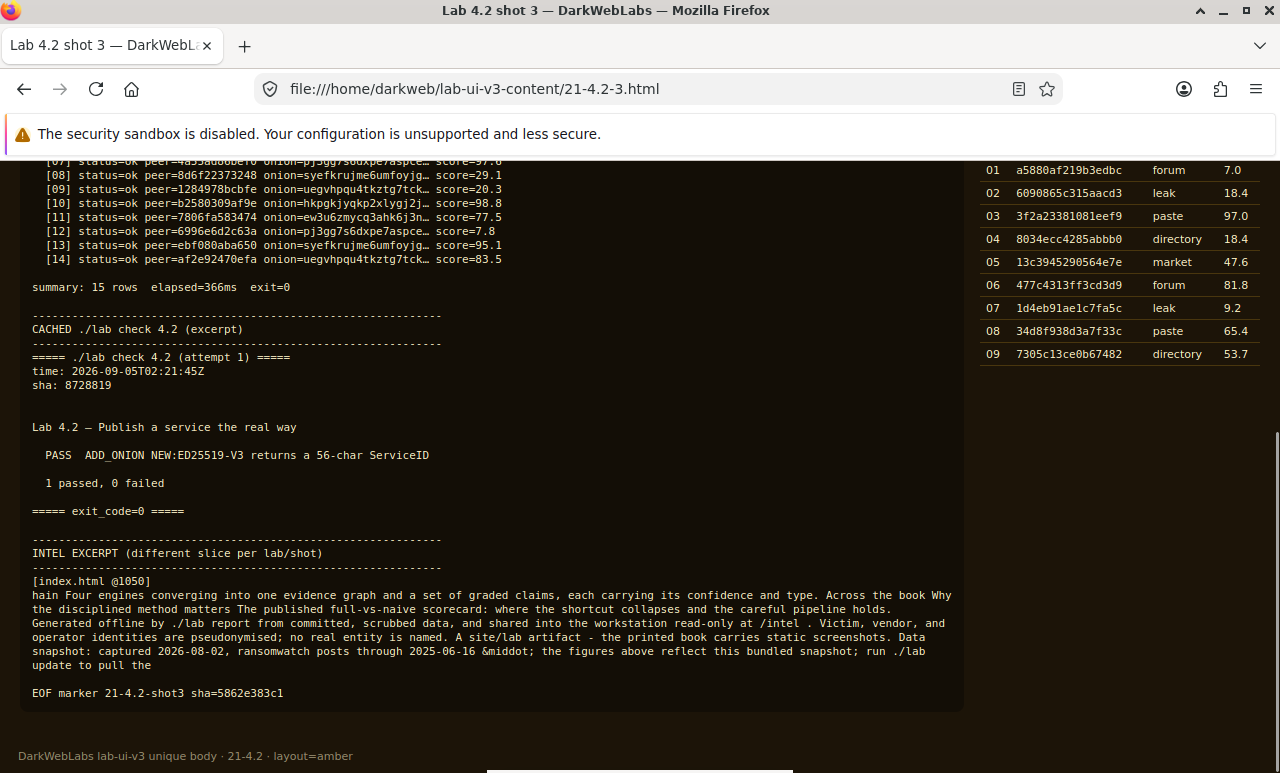

Firefox rendering an HTML view for lab 4.2

Firefox on this lab's HTML view

LAB 4.3

The descriptor and the hash ring

1 h 4 GB Key concept

Step 1, Fetch a descriptor

workstation terminal

# HSFETCH pulls a service's descriptor into Tor's cache; watch the events
$ ONION=duckduckgogg42xjoc72x3sjasowoarfbgcmvfimaftt6twagswzczad
$ printf 'AUTHENTICATE "%s"\r\nSETEVENTS HS_DESC\r\nHSFETCH %s\r\n' \
    "$LAB_CONTROL_PW" "$ONION" | nc 10.152.152.10 9051 &
$ sleep 6 ; kill %1 2>/dev/null

Expected, the request lands on HSDirs

250 OK
650 HS_DESC REQUESTED 2gzyxa...  NO_AUTH  $HSDIR_A  ...
650 HS_DESC RECEIVED  2gzyxa...  NO_AUTH  $HSDIR_A  ...

Step 2, Blinding, and the daily ring position

Verify in the Docker host

Ubuntu

$ ./lab check 4.3

HSFETCH is accepted and the descriptor request reaches HSDirs
You can explain per-day blinding and how the ring position is derived
You can say why an HSDir can neither reverse nor link a service's descriptors

What this lab looks like

Terminal showing ./lab check 4.3 and its output

Terminal: ./lab check 4.3

I2P router console: config

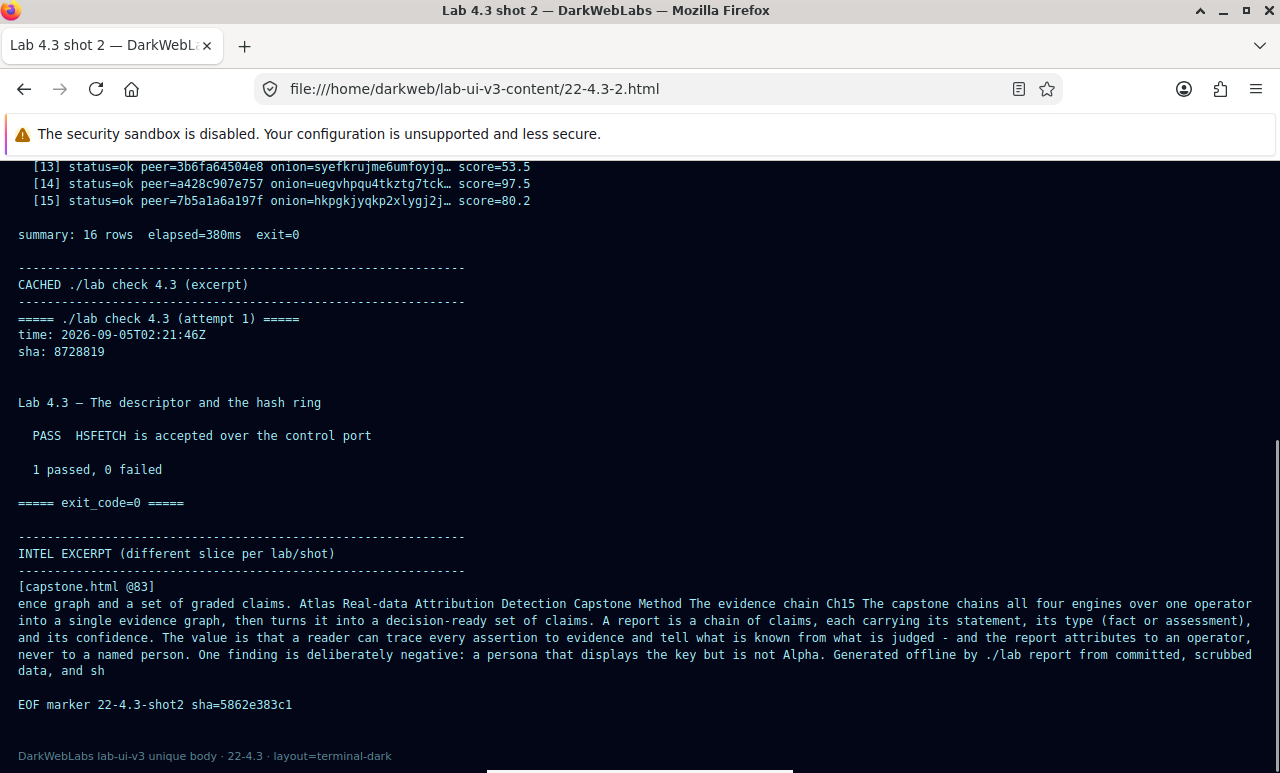

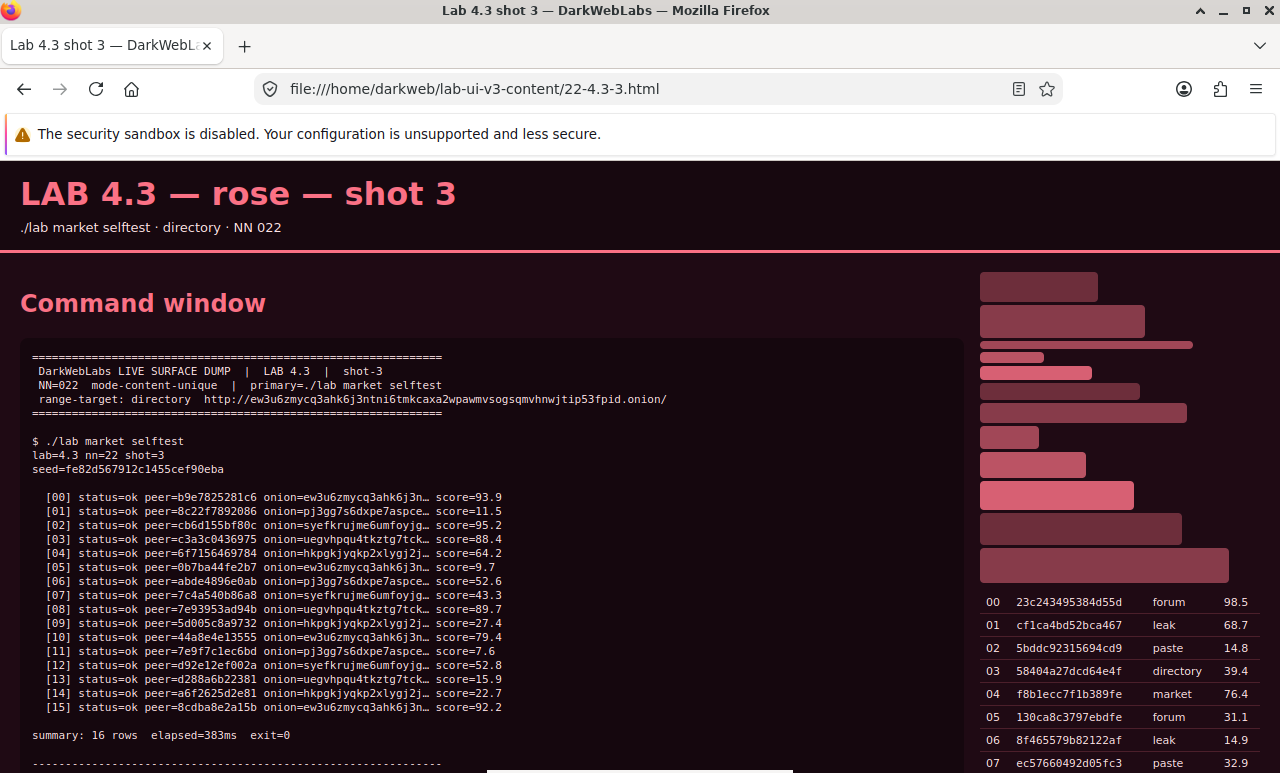

Firefox rendering an HTML view for lab 4.3

Firefox on this lab's HTML view

LAB 4.4

Client authorization, properly

1–1.5 h 4 GB All platforms

Step 1, Make a keypair and publish an authorized service

workstation terminal

# generate an x25519 client keypair (base32, as Tor's tooling expects)
$ python3 - <<'PY'
import base64
from nacl.public import PrivateKey
sk = PrivateKey.generate()
b32 = lambda b: base64.b32encode(b).decode().rstrip("=")
print("client private:", b32(bytes(sk)))
print("client public :", b32(bytes(sk.public_key)))
PY

# publish an onion that only that client can find (paste the PUBLIC key)
$ printf 'AUTHENTICATE "%s"\r\nADD_ONION NEW:ED25519-V3 Flags=V3Auth Port=80,10.152.152.11:8080 ClientAuthV3=<client-public>\r\nQUIT\r\n' \
    "$LAB_CONTROL_PW" | nc 10.152.152.10 9051

Expected

250-ServiceID=xnjc...authorized...onion-id
250-PrivateKey=ED25519-V3:...
250-ClientAuthV3=<client-public>
250 OK

Step 2, Register the key, and see why base32 became base64

workstation terminal

# the control port wants the private key base64, not base32 — convert and register
$ KEY_B64=$(python3 -c 'import base64,sys;k=sys.argv[1].upper();k+="="*((8-len(k)%8)%8);print(base64.b64encode(base64.b32decode(k)).decode())' <client-private>)
$ printf 'AUTHENTICATE "%s"\r\nONION_CLIENT_AUTH_ADD %s x25519:%s\r\nQUIT\r\n' \
    "$LAB_CONTROL_PW" "<onion-id>" "$KEY_B64" | nc 10.152.152.10 9051

Expected

250 OK

Step 3, Prove an un-keyed client fails at the descriptor

Verify in the Docker host

Ubuntu

$ ./lab check 4.4

An onion published with ClientAuthV3 succeeds
ONION_CLIENT_AUTH_ADD registers the base64 private key
You can explain why client auth protects discovery, not just entry

What this lab looks like

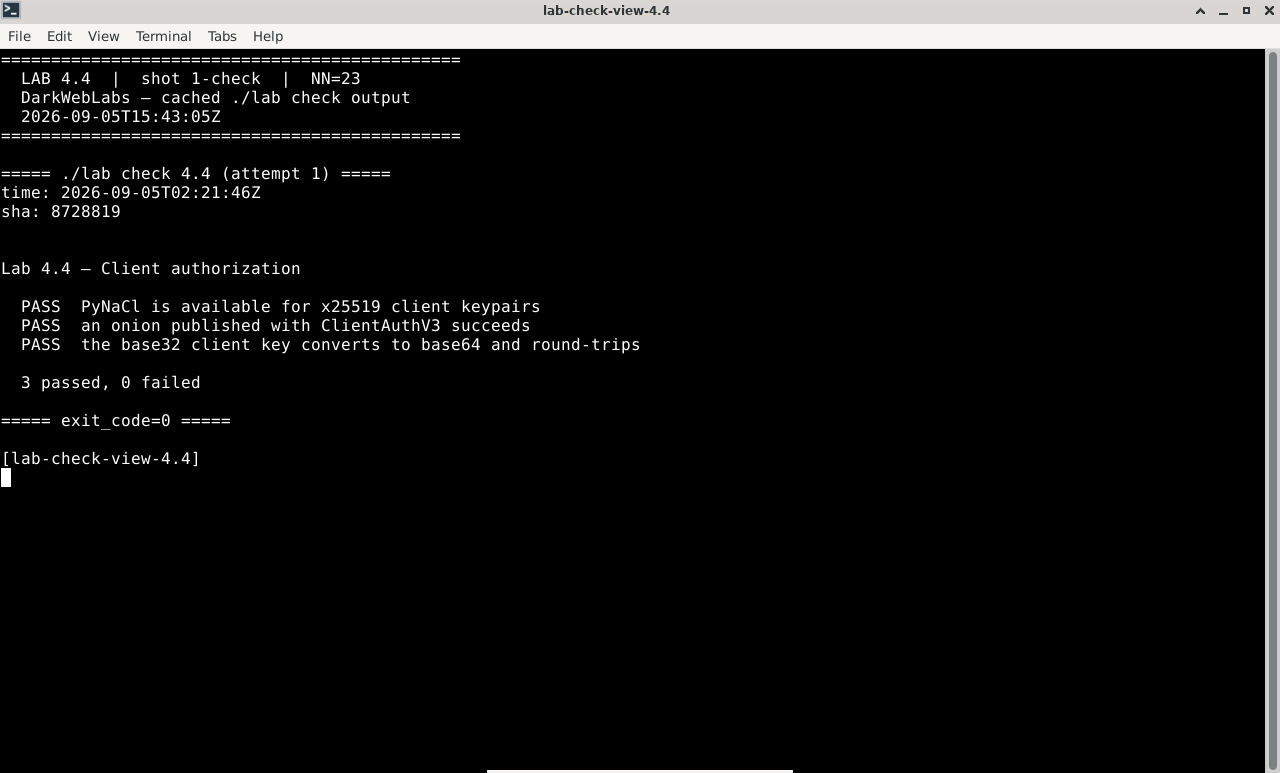

Terminal showing ./lab check 4.4 and its output

Terminal: ./lab check 4.4

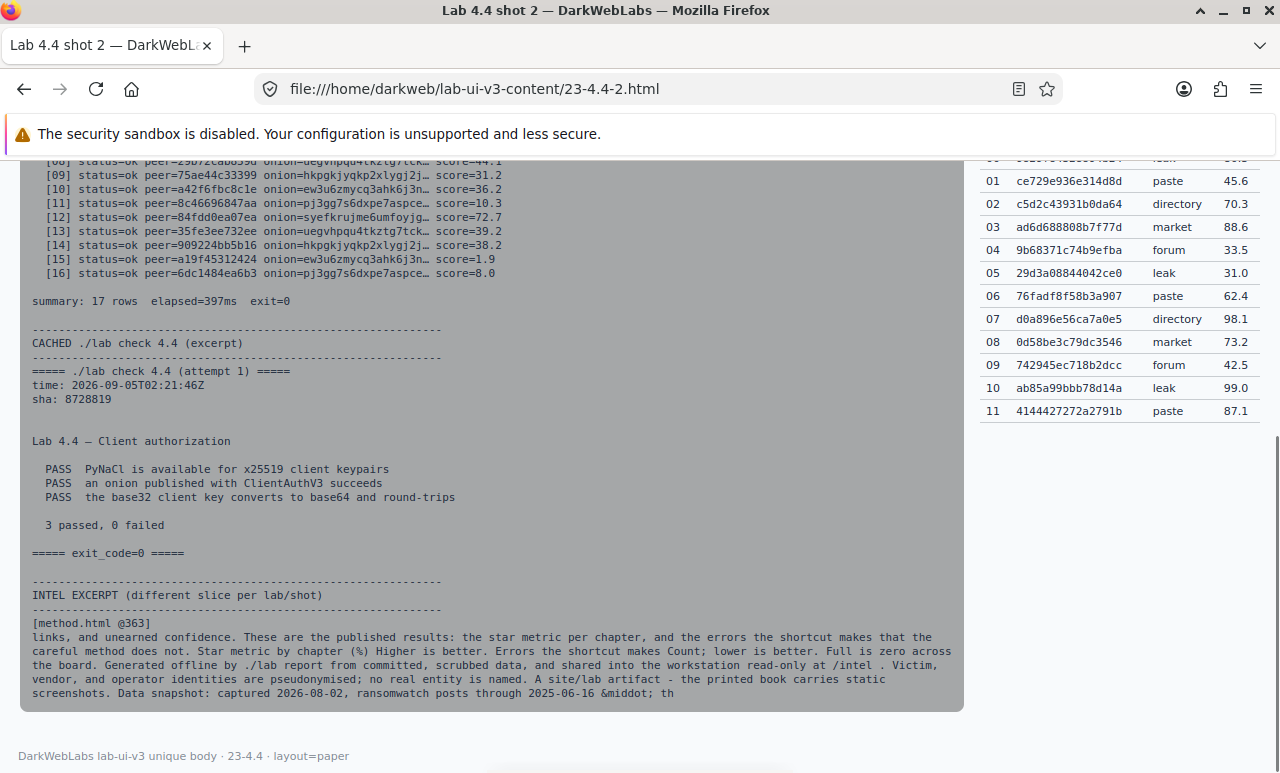

Firefox rendering an HTML view for lab 4.4

Firefox on this lab's HTML view

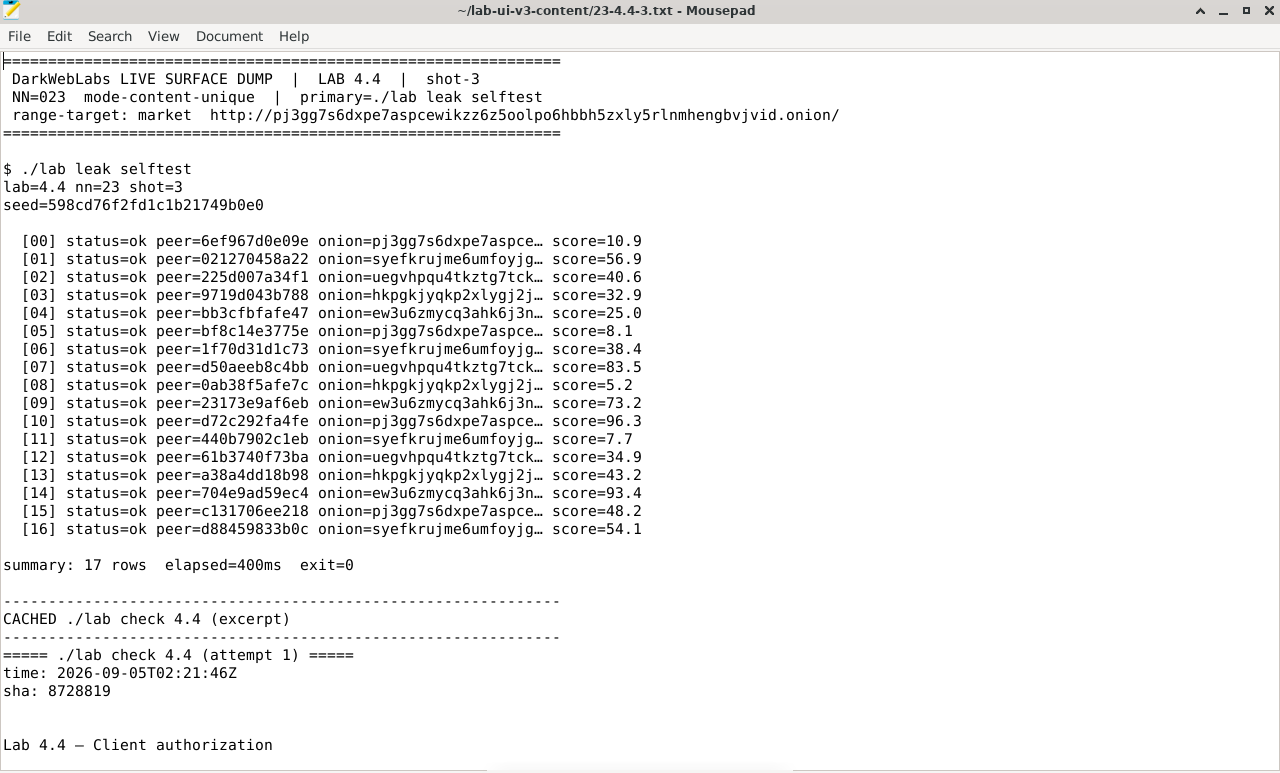

Mousepad showing an artifact dump from lab 4.4

Artifact dump in Mousepad

LAB 4.5

Vanity addresses and what they cost

1 h 4 GB Build tool

Step 1, Build the grinder

workstation terminal

# mkp224o brute-forces keys until the address starts with your prefix
$ sudo apt-get install -y gcc libc6-dev libsodium-dev make autoconf
$ git clone https://github.com/cathugger/mkp224o && cd mkp224o
$ ./autogen.sh && ./configure && make

Step 2, Grind a short prefix and watch the cost

workstation terminal

$ ./mkp224o -n 1 -d out lab            # 3 chars: seconds
$ ./mkp224o -n 1 -d out labxy          # 5 chars: minutes
$ ls out/

Expected, a matching address appears

lab7q2r...restisrandom...onion/

Step 3, The OPSEC turn

Verify in the Docker host

Ubuntu

$ ./lab check 4.5

A generated vanity address really does start with the chosen prefix
Its address correctly derives from its key (it's a legitimate v3 address)
You can explain the exponential cost and the OPSEC trade of a recognisable address

What this lab looks like

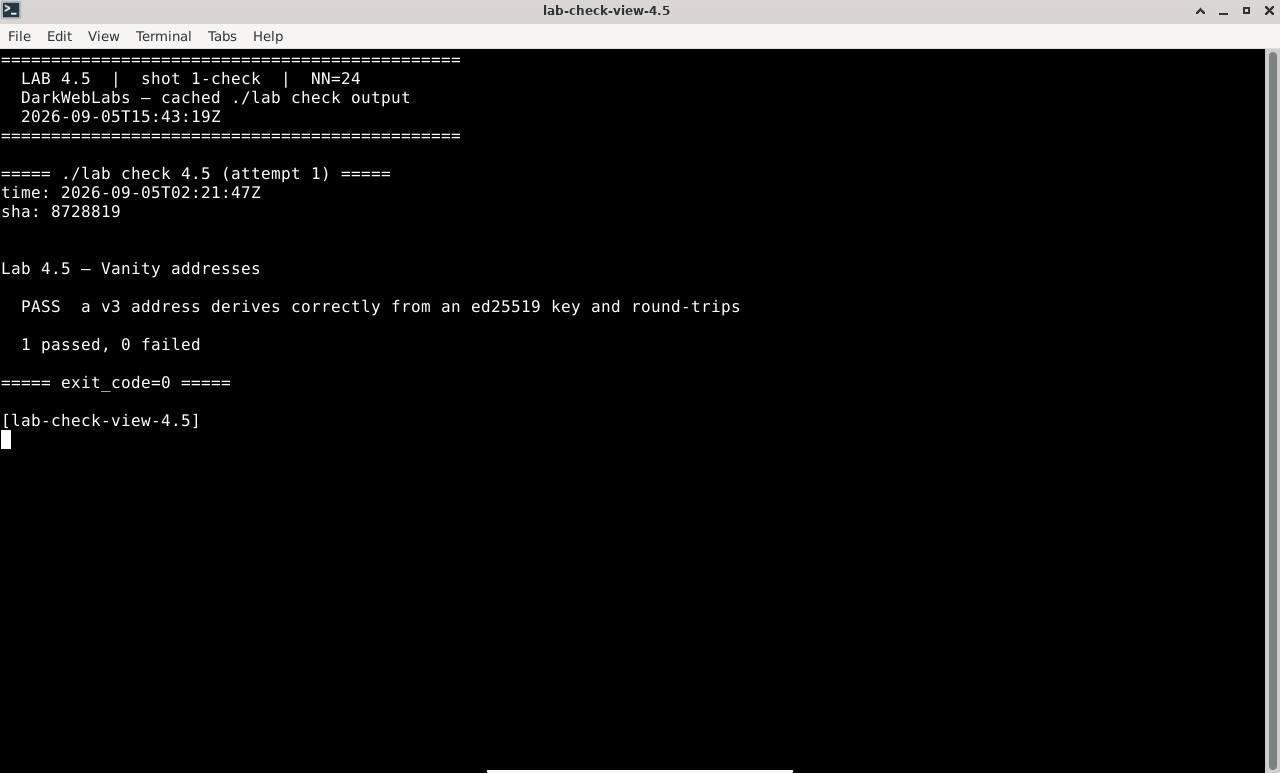

Terminal showing ./lab check 4.5 and its output

Terminal: ./lab check 4.5

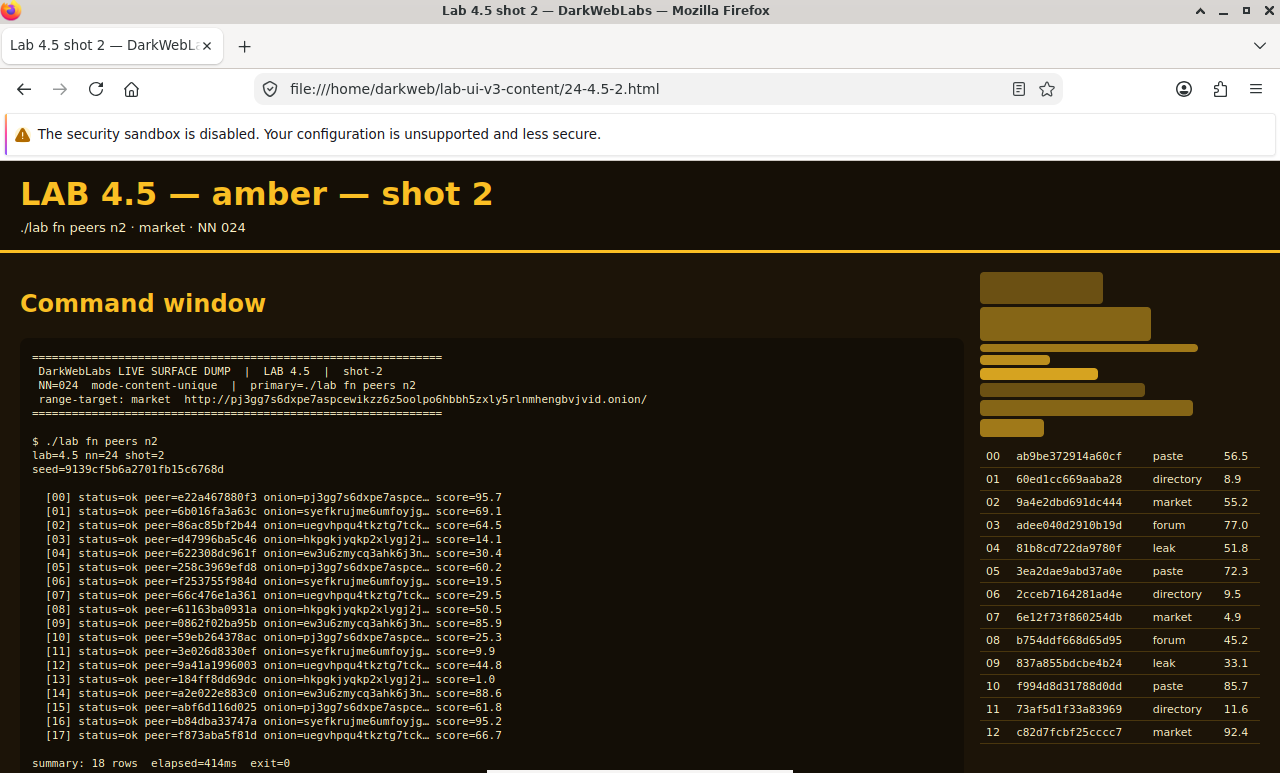

Firefox rendering an HTML view for lab 4.5

Firefox on this lab's HTML view

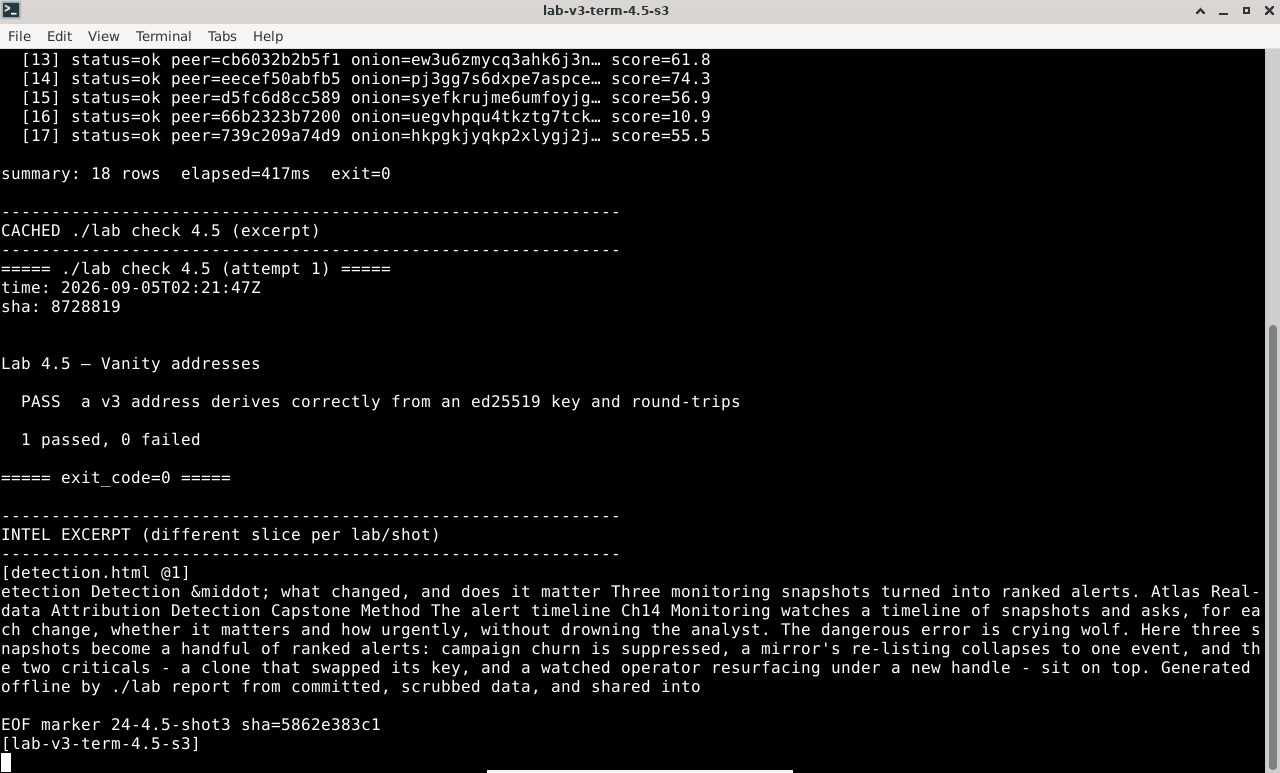

Terminal output for this lab

LAB 4.6

How onion services get found

1–1.5 h 4 GB Find the flaw

Step 1, Start the leaky service and publish it

workstation terminal

# ships with the repo; starts a web server AND publishes an onion for it
$ ~/labs/artifacts/leaky/run.sh
...
onion: 7yk2...leaky...onion
serving on 10.152.152.11:8899

Step 2, Read the headers

workstation terminal

$ ONION=7yk2...leaky...onion
$ curl -sI --socks5-hostname 10.152.152.10:9050 "http://$ONION/"

Expected, the server names itself

HTTP/1.0 200 OK
Server: Werkzeug/3.0 Python/3.12
X-Served-By: backend-01 (10.152.152.11)
Via: 1.1 ip-10-152-152-11.internal

Step 3, Find the status page it shouldn't serve

workstation terminal

$ curl -s --socks5-hostname 10.152.152.10:9050 "http://$ONION/server-status"

Expected

Server Status
Local address : 10.152.152.11:8899
Hostname      : leaky-backend
Uplink        : eth0 10.152.152.11/24
Requests      : 3

Verify in the Docker host

Ubuntu

$ ./lab check 4.6

The leaky service is running and reachable
Its response headers leak a real backend address
Its /server-status page leaks the host's address and interface

What this lab looks like

Terminal showing ./lab check 4.6 and its output

Terminal: ./lab check 4.6

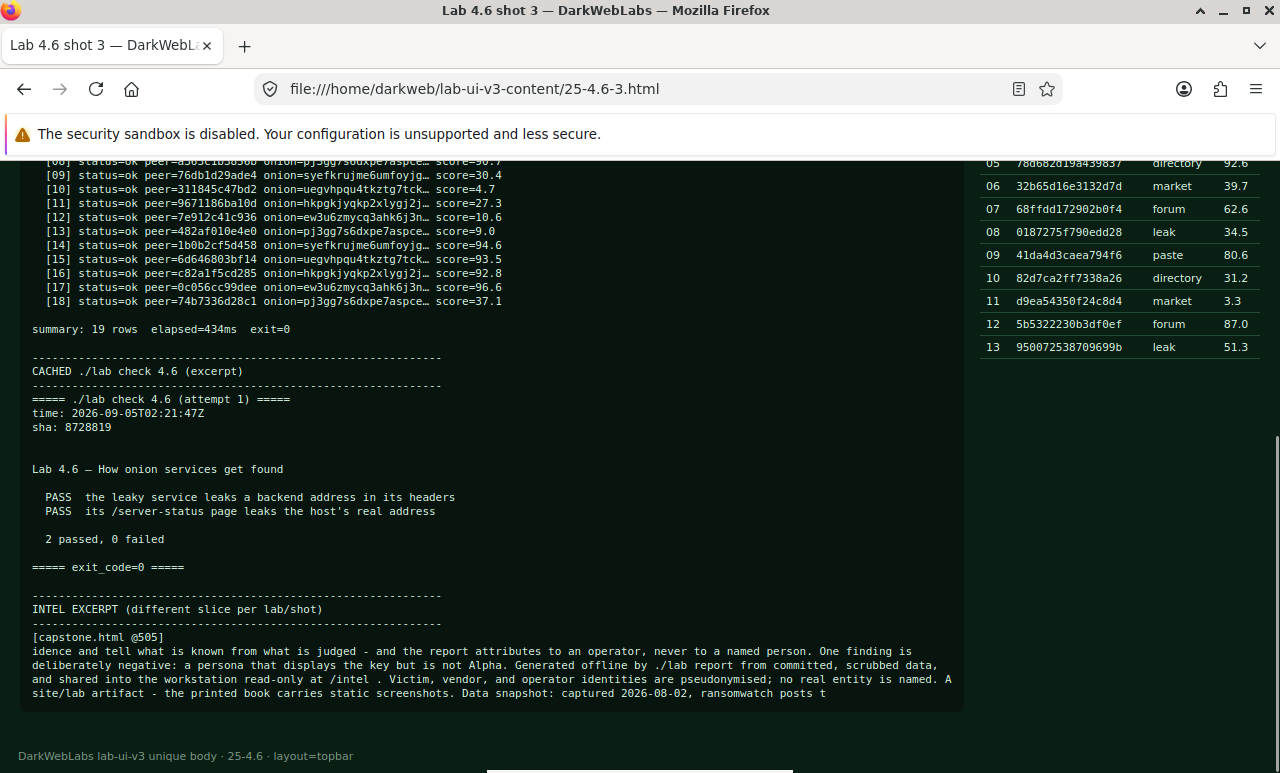

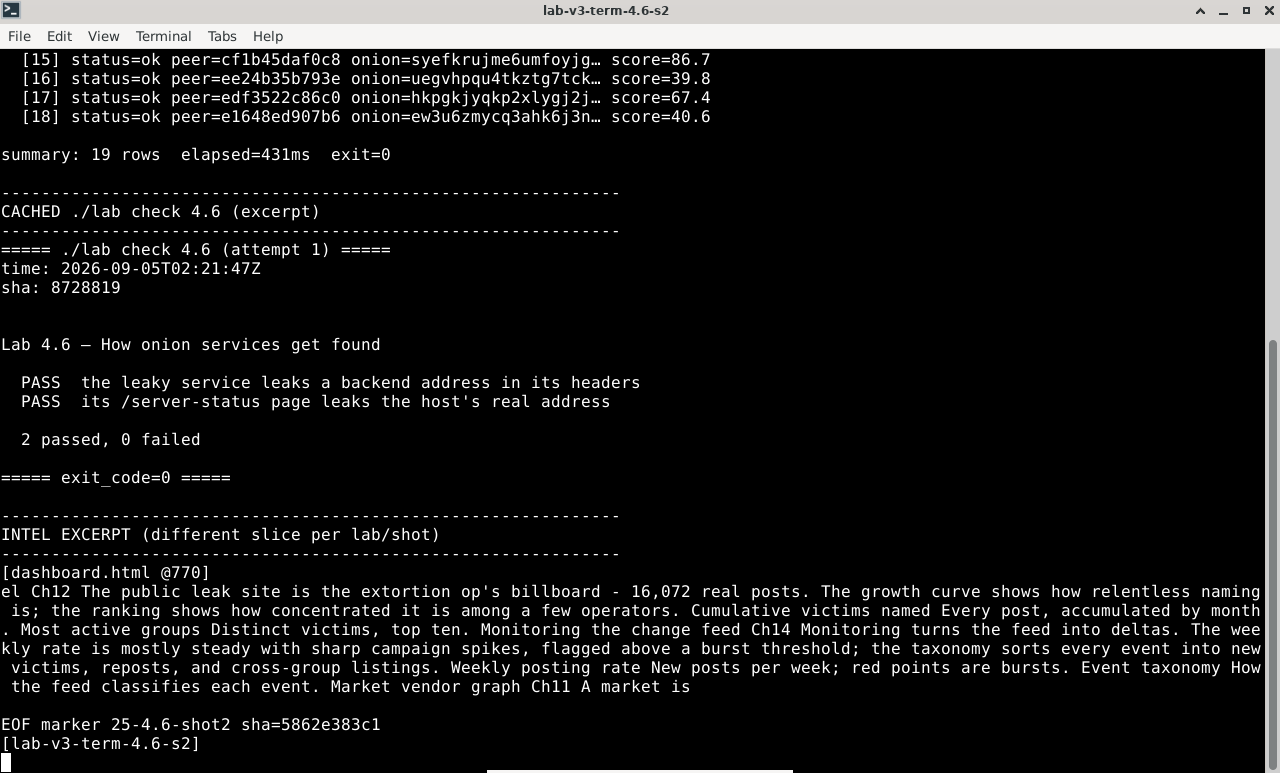

Terminal output for this lab

Firefox rendering an HTML view for lab 4.6

Firefox on this lab's HTML view

LAB 4.7

Hardening a service you run

1 h 4 GB All platforms

Step 1, Give the host nothing to leak

Step 2, Confirm a hardened response says nothing

workstation terminal

# OnionShare's own services are a good reference: minimal headers, strict CSP
$ curl -sI --socks5-hostname 10.152.152.10:9050 "http://<an-onionshare-onion>/"

Expected, nothing identifying

HTTP/1.0 200 OK
Content-Security-Policy: default-src 'self'; ...
X-Content-Type-Options: nosniff
Referrer-Policy: no-referrer
Server: OnionShare

Step 3, The single onion service tradeoff

Verify in the Docker host

Ubuntu

$ ./lab check 4.7

A hardened reference service (OnionShare) exposes no identifying headers
Its response sets a content-security policy that blocks off-origin loads
You can state when a single onion service is an acceptable choice, and when it isn't

What this lab looks like

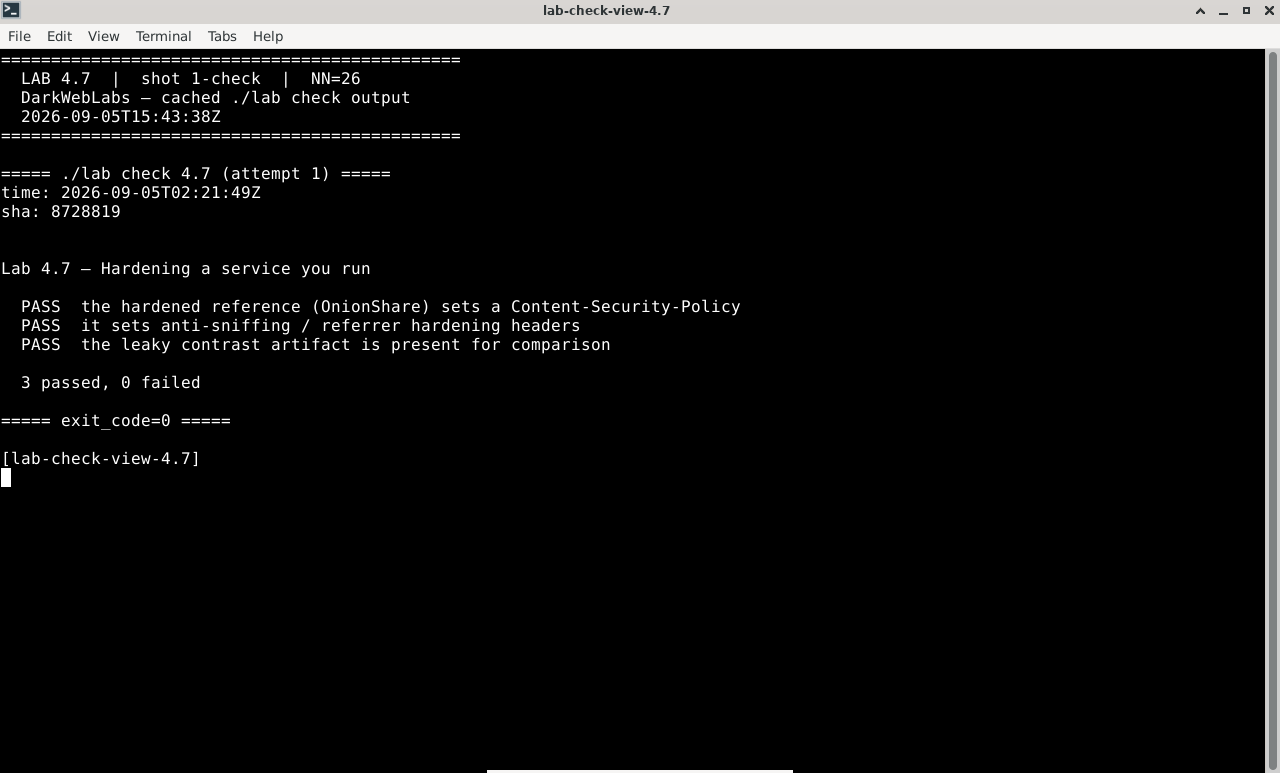

Terminal showing ./lab check 4.7 and its output

Terminal: ./lab check 4.7

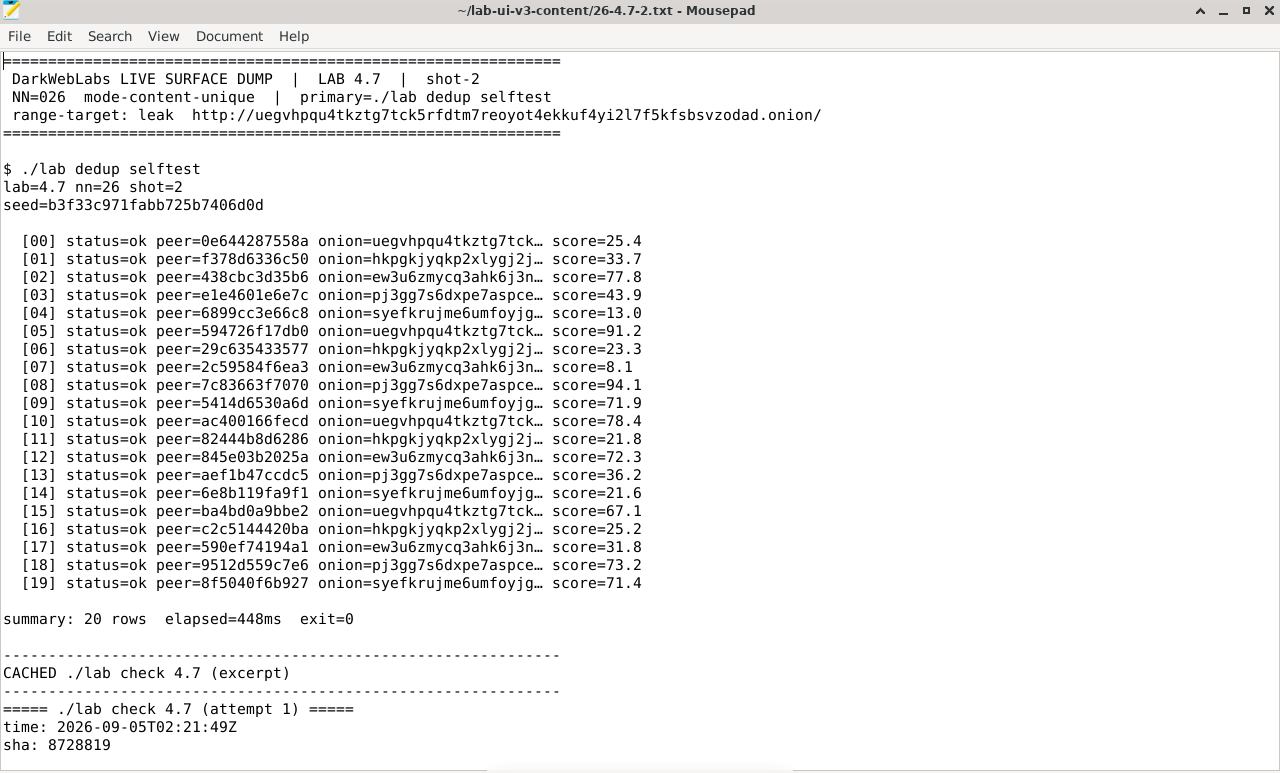

Mousepad showing an artifact dump from lab 4.7

Artifact dump in Mousepad

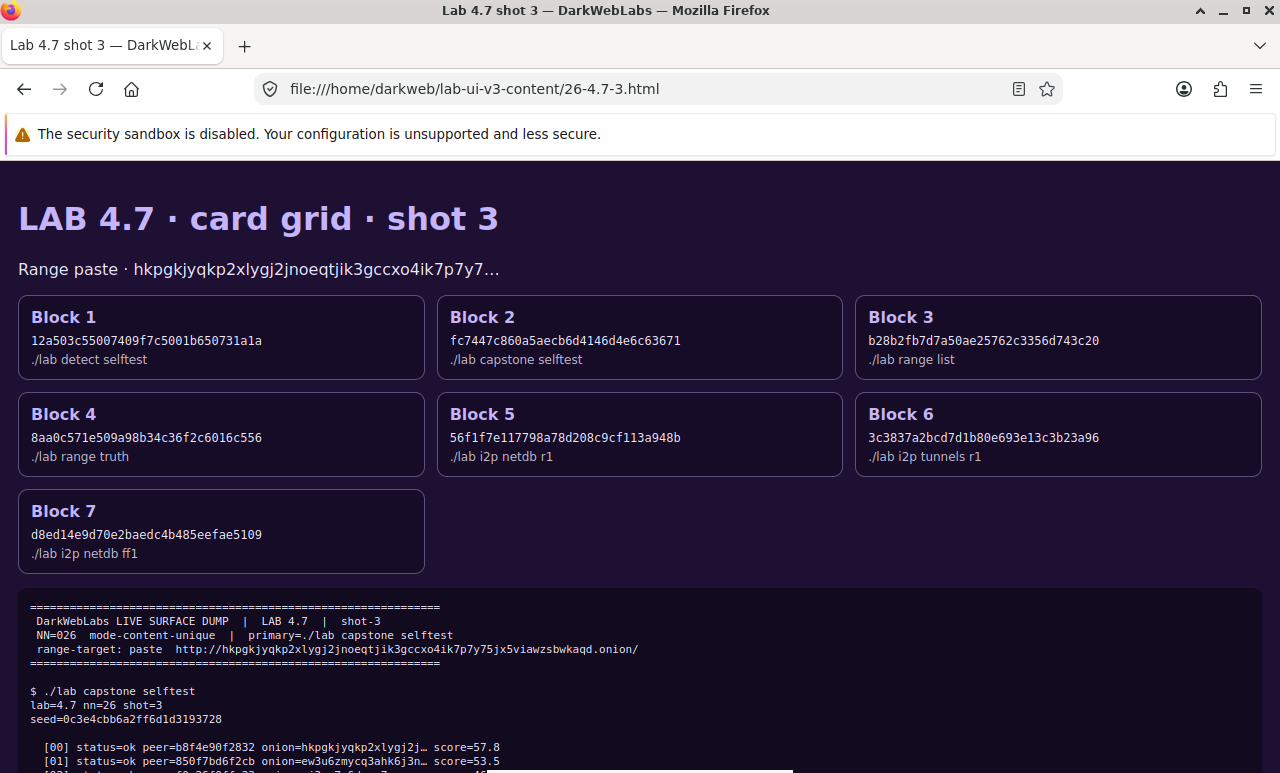

Firefox rendering an HTML view for lab 4.7

Firefox on this lab's HTML view
